QNAP QSW-M1204-4C 12-Port Desktop Switch

$1,411.00 inc. GST

Upgrade your network with a 10GbE managed switch

Available on back-order

SKU: QSW-M1204-4C Categories: , , , ,

Description

QNAP QSW-M1204-4C 12-Port Desktop Switch

The QNAP QSW-M1204-4C is a Layer 2 Web Managed Switch with four 10GbE SFP+ ports and eight 10GbE SFP+/RJ45 combo ports that enables blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia), and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M1204-4C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity.

  • Includes eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.
  • The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
  • Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
  • One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
  • Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M1204-4C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
  • QSS can be updated with just one click, helping IT staff ensure their network security.
  • Available with 4 or 8 combo ports

Flexible deployment combo ports and 10GbE / NBASE-T

The 12-port QNAP QSW-M1204-4C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1204-4C is 240 Gbps, guaranteeing the full potential of each port. The QSW-M1204-4C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

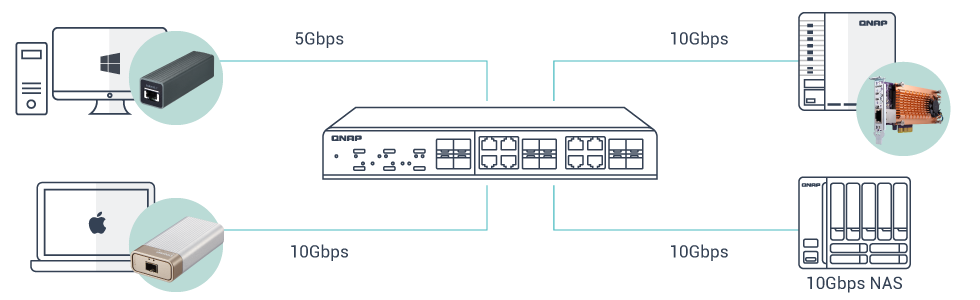

Fully embrace High-Speed Networking with QNAP!

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M1204-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

QSS: Intuitive Network Management Software

The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

  • Sleek Design

    Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

  • GUI

    The visual illustration matches physical ports for greater usability.

  • Value-added

    With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.

Additional information

Weight 2.94 kg
Dimensions 282 × 384 × 78 mm
Network type

10GbE, 1GbE, 2.5GbE, SFP+

Network Connections in Total

12

Chassis

Desktop

Power Supply

Single

Warranty

2 years
