QNAP QM2-2G2P2T network card
Logical diagram of the QNAP QM2-2G2P2T network card

QNAP QM2-2P2G2T 2.5GbE and M.2 Expansion Card

$397.00 inc. GST

Maximize your NAS storage capacity, performance and network connectivity

Available on back-order

SKU: QM2-2P2G2T Categories: , , ,

Description

QNAP QM2-2P2G2T 2.5GbE and M.2 Expansion Card

The QNAP QM2-2P2G2T adds support for M.2 SSDs and 2.5GbE connectivity to your QNAP NAS. Combining M.2 SSD and 2.5GbE connectivity into one solution, the QM2 PCIe expansion card improves overall NAS performance by enabling SSD caching while providing an affordable upgrade path for adopting 2.5GbE networks. As a PCIe card, the QM2-2P2G2T does not occupy any 3.5-inch drive bays, allowing you to upgrade your NAS without impacting your potential storage capacity.

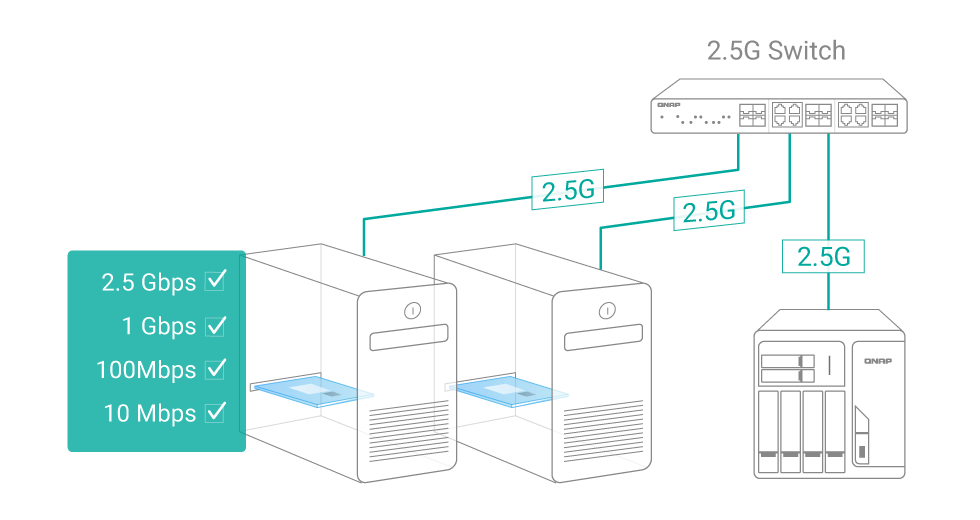

Future-proof your network environments

The QNAP QM2-2P2G2T QM2 PCIe card also features dual 2.5GBASE-T Multi-Gigabit (2.5G/1G/100M/10M) network ports to empower your NAS/computer/server with high-speed 2.5GbE connectivity for bandwidth-demanding tasks.

  • M.2 SSD thermal sensors allow real-time M.2 SSD temperature monitoring.
  • A quiet cooling module (heatsink and smart fan) minimizes overheating risks to sustain constant high performance.
  • LED indicators for monitoring M.2 SSD status.
  • Works with all QNAP switches



Dual M.2 2280 PCIe NVMe SSD & dual-port 2.5GbE expansion card
Connector: 2 x M.2 2280 PCIe NVMe SSD slots; 2 x 2.5GBASE-T ports
PCIe and Lanes: PCIe Gen3 x4
Transmission rates: 2.5G/1G/100M/10M
Controller: Intel Ethernet Controller I225-LM
Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included.
Dimensions (L x W x H): 152.65 x 68.9 x 20.6 mm
Cable: RJ-45; over CAT-5e class cable

Supported operating systems: QTS, QuTS hero (for greater compatibility, ensure you are running the latest version).

Please check the M.2 SSD compatibility list and QM2 Installation Guide.
